Comprehensive Gear Reducers and Gearboxes

Shanghai taxing transmission technology co.,ltd is a member of China transmission Association , the company has been dedicated to the development, manufacturing and sale of reducer since 1991.
For more than 26 years, we committed to product development and talent reservation adhering to the concept of people-oriented and technological innovation. We always provide customers with first-class and reliable transmission equipment. Our main product is planetary gear reducer, industry helical gearbox, elevator and other series products. Its’ widely used in metallurgy, mining, lifting and conveying engineering, environmental engineering, petrochemical, plastics, food packaging and other industries. With excellent quality and good reputation, BAFFERO products become the good choice of clients and exported to Europe, Southeast Asia and other area.



FEATURES
1. Compacted structure and higher strength.
2. Reliable operation, higher transmission efficiency.
3. Providing the output shaft with Flange disc, which can meet mounting requirement of narrow space.


INSTALLATION
1. Foot Mounted
2. Flange Mounted
3. Shaft Mounted



APPLICATIONS
Belt conveyor drives
Bucket elevator drives
Agitator drives
Hoisting gear drives
Travelling gear drives
Paper machine drives
Dryer drives




CHARACTERISTICS
1. Bearing: NSK brand (One of longest bearing manufacturer in the world from 1916)
2. Oil Seal: NAK brand (VITON, high temperature resistance, oil resistance)
3. Gear Precision: DIN6 (Ground by the Machine imported from Swizerland)
4.Gear Hardness: HRC58-62
5. Use low-carbon alloyed steel cementation processing completely.
6. Small volume, Big torque, Compact structure.

APPLICATIONS
Material Handling Industry, Quarrying and Mining Industry
Belt Conveyors Transmission Mechanism:
Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line

INSTALLATION
Hanging Shaft Mounted With Torque Arm
Belt Conveyor & Pulley Drive System: ATA, Electric Roller, Pulley, Electric Motor, Torque Arm

LUBRICATION
Oil-bath and Splash Lubrication

COOLING
Natural Cooling

PACKAGING & DELIVERY
Packaging details: Standard export wooden case
Port: Ningbo / Shanghai, or other.
Lead Time: 1~50pcs, 10days;
>50pcs to be negotiated.


Shaft mounted reducer, shaft mounted speed reducer, shaft mounted gear reducer, reductor, TA/ DXG series shaft mounted gearboxes, geared motor, gearmotor, riduttori pendolari, Bonfiglioli type's shaft mounted reducer.


FEATURES
1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

COMPANY INFORMATION
TAIXING has acquired the know-how and the experience to be a leader in the field of high speed gears.

The industrial site of WENZHOU Zhejiang Province has developed a tradition in high performance gear units for more than 28 years and through 500,000 references for the Power Transmission equipment and the Oil & Gas industries (speed reducer or increaser, auxiliary and special gearboxes). Now there are more than 300 employees join our family to provide the best transmission equipment for driving a better world.

As a member of China general reducer machinery association, Zhejiang Dongfang Driving Machine Co.,Ltd is a manufacturer who specializing in producing and marketing of Speed reducer products. We take the lead in passing ISO9001 and CE, keeping the perfect product quality and wining deeply trust from worldwide client are based on the competely quality system and strictly management.



OVERVIEWS
Product Name Gearbox / Gear reducer
Ratio 5, 7.5, 10, 12.5, 15, 20, 25, 31
Output Speed 16-280rpm
Rated Power 1.6-193KW
Output torque 150-16000N.m
Gear type Helical
Mounting type Torque arm, shaft mounted
Gear Precision level ISO6
Optional accessory backstop
Color Blue, grey or other.
Warranty 12 months


COMMERCIAL TERMS
Minimum Order Quantity 1pcs
Price 100 ~ 3000 USD
Payment Terms T/T or other
Supply Ability 10000pcs per month
Delivery Time 7~15 days
Packaging Details Standard export wooden case




Brand information
Brand Name TAIXING
Model Number DXG30-DXG125
Certification CE/ ISO9001
Place of Origin China

Quick details
Product Name Gearbox
Ratio 5, 7.5, 10, 12.5, 15, 20, 25, 31
Output Speed 16-280rpm
Rated Power 1.6-193KW
Output torque 150-16000N.m
Gear type Helical
Mounting type Torque arm, shaft mounted
Gear Precision level ISO6
Optional accessory backstop
Color Blue, grey or other.
Warranty 12 months



R Series Inline Helical Gear Reducer  is designed based on modularization, which bring many difference kinds of combinations, mounting types, and structure designs. The gear reducer is widely used in Conveyor & Material handling, Mining & Quarry, Crusher & Cement, Automatic Production Line, Transport & Packaging, Food processing & Beverage, Construction & Metal processing, Plastic & Chemical industry, etc.

CHARACTERISTICS
1. Quality aluminum alloy gear box, light weight and not rust
2. Two optional worm wheel materials: Tin (Stannum) bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation


INSTALLATION
Flange Mounted
Foot Mounted
Torque Arm Mounted


LUBRICATION
Grease Lubrication
Oil-bath and Splash Lubrication

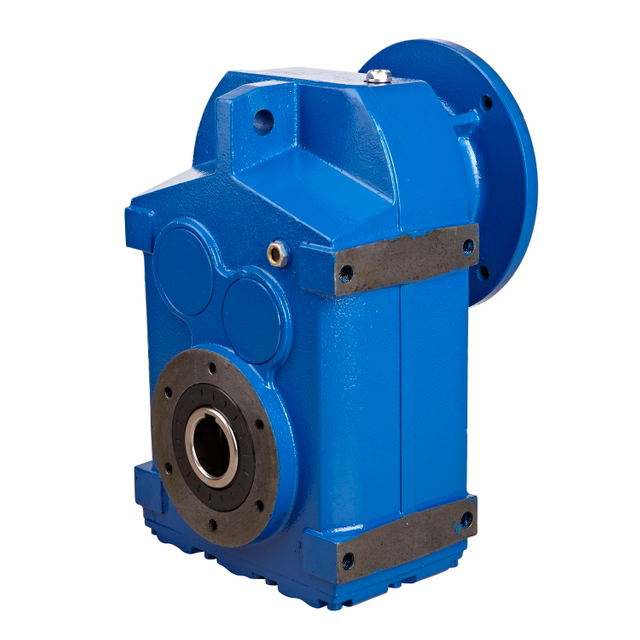

F series parallel shaft helical gearbox
1.Parallel Output
2.compact structure
3.wide transmission torque

All gear materials used 20CrMnTi, carburized, tooth surface hardness of 58-62HRC, after grinding teeth up to 6 accuracy, to ensure product reliability and low noise. Reducer reduce from 0.18KW-200KW, the output torque up to18000N.M, speed ratio from (with 4-pole motor) 3.81-273, can be divided into two-stage transmission (transmission efficiency up to 96%), Three-stage transmission (transmission efficiency of up to 94%); with 6-pole or 8-pole motor can get lower output speed; For lower output speed can be used in combination of two-stage reducer, you can get a lower Output speed (more than ten thousand speed ratio). Above, such as the input coupled with continuous variable speed transmission can achieve more requirements. There are two types installation vertical and horizontal, the output shaft form solid mandrel, hollow shaft (or non-standard production), can be installed in different directions can be used. In addition, the gear box can be equipped with different types of motor (ordinary motor, explosion-proof motor, variable frequency motor, brake motor, etc.). F series parallel shaft helical gear reducer is widely used in food grain machinery, printing and packaging machinery, three-dimensional garage equipment, environmental protection machinery, transportation equipment, chemical equipment, metallurgical mining equipment, steel power equipment, etc.
